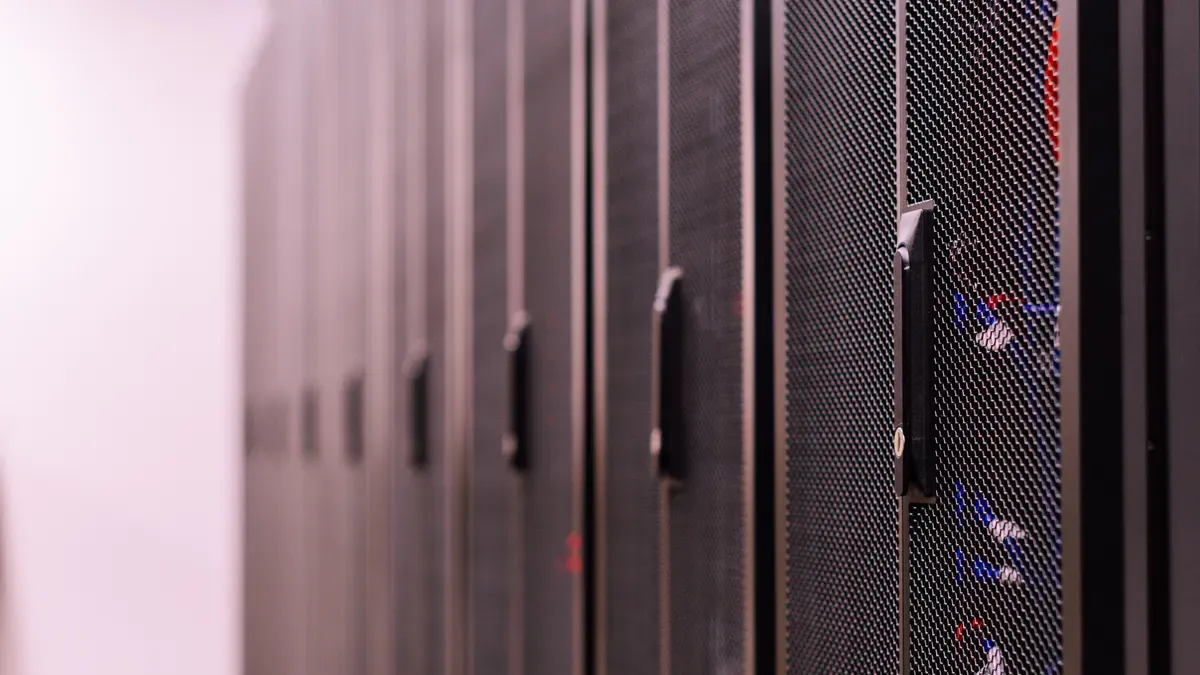

Anti-static raised floors are the first line of defense for critical electronics in data centers, server rooms, and electronics manufacturing plants. A properly engineered system uses static-dissipative top coverings — typically Anti-static HPL or conductive PVC — to capture static electricity generated by foot traffic and equipment. That charge is then channeled through a conductive edge trim into the galvanized steel understructure (pedestals and stringers), and finally discharged safely through a copper grounding grid connected to a verified earth point. This continuous, engineered grounding pathway ensures that electrostatic charges cannot accumulate near sensitive devices. In mission-critical environments, where even a micro-discharge measured in the tens of volts can corrupt data or permanently damage microchips, ESD floor protection is not optional — it is a fundamental infrastructure requirement.

Gail Shao, Export Manager at Abeite: What Surface Resistance Should an ESD-Safe Raised Floor Actually Meet?

Buyers often assume any "anti-static" label is sufficient — but genuine ESD protection depends on measurable, third-party verified performance. Our panels are engineered to maintain a precise surface resistance between 1×10⁶ and 1×10⁹ ohms, consistent with ANSI/ESD S20.20 and IEC 61340-5-1. Equally important is the grounding path: resistance from panel surface to earth must be ≤ 4Ω. When evaluating any raised floor system, always request third-party test certificates and confirm that the grounding grid is verified after installation on-site — factory test data alone is not sufficient for mission-critical facilities.

ESD Risks for Sensitive Electronics

What Is ESD

Electrostatic discharge (ESD) is a sudden, transient flow of electricity between two objects that carry different electrostatic potentials. This event typically occurs when a person or object that has accumulated a static charge comes into contact with — or passes close to — a sensitive electronic component. ESD can occur in almost any indoor environment, particularly wherever electronic equipment is present. Critically, the discharge threshold that damages modern semiconductors is often far below the level a human can feel: a person may not perceive a static shock below approximately 3,000 volts, yet a microchip can suffer permanent gate-oxide rupture from as little as 100 volts. ESD is therefore an invisible, continuous threat in data centers, server rooms, and electronics manufacturing facilities. This is precisely why standards bodies such as the ESD Association publish formal ESD control-program requirements for these environments.

ESD Damage in Electronics

Sensitive electronic components are highly vulnerable to ESD. Microchips, transistors, and capacitors can sustain permanent damage from even minor static discharges. The damage profile ranges from immediate catastrophic failure (hard failure) to latent degradation that only manifests as field failure weeks or months later — making ESD a particularly insidious reliability risk. The downstream consequences include costly component replacement, unplanned system downtime, and, in server environments, potential data loss or corruption.

The table below summarizes common electronic components and their ESD vulnerability profiles:

Common ESD Scenarios

ESD events arise from everyday situations that most facility occupants overlook. Static charges build up on people and objects through triboelectric charging — the transfer of electrons caused by friction or contact and separation. Common scenarios include:

• Walking across synthetic or waxed flooring while wearing insulating footwear

• Handling non-conductive packaging materials such as plastic bags, polystyrene foam, or clamshell trays

• Rising from a fabric or vinyl chair, generating charge through contact separation

• Operating air blowers, heat guns, or spray cleaners near ESD-sensitive assemblies

• Induction of surface potential on sensitive components placed near highly charged insulating materials (e.g., styrofoam cups, plastic binders)

• Accidental contact between a charged metallic tool and an unprotected electronic assembly

In all of these scenarios, anti-static raised floors provide a systematic, continuous control measure by ensuring that any charge accumulated on personnel is safely dissipated to earth the moment it is generated — rather than waiting to be transferred to sensitive equipment.

The Hidden ESD Threat Steel Floors Don't Warn You About: Zinc Whiskers

Zinc whiskers are microscopic, hair-like conductive metal filaments that grow spontaneously from electroplated zinc surfaces over time — including the galvanized undersides of steel raised floor panels. They are typically 1–10 mm in length and only a few micrometers in diameter, making them entirely invisible during routine floor inspections. Under normal data center airflow conditions, these filaments can detach and become airborne, circulating through underfloor plenums and into server chassis intake vents.

Once inside a server, a single zinc whisker bridging two conductors on a PCB is sufficient to cause an immediate short circuit, triggering unplanned server failure or data corruption. Because the event leaves no obvious physical evidence, zinc whisker incidents are notoriously difficult to diagnose and are frequently misattributed to firmware faults or component failure.

Why Abeite's Calcium Sulphate Raised Floors eliminate this risk entirely: Our panels use a 100% natural gypsum (calcium sulphate) core with no metallic plating on the panel body. There is no zinc coating to form whiskers. This makes Abeite's calcium sulphate access floors the definitive choice for long-lifecycle data center deployments where both ESD control and server hardware integrity must be guaranteed over a 15–20 year operational period.

How Static Charges Form Indoors

ESD risk begins with static charge accumulation inside buildings. Understanding the root causes allows facilities managers and IT infrastructure architects to implement systematic controls rather than relying on ad-hoc measures.

Sources of Static Electricity

Many common materials and activities in electronics environments generate static electricity. Key contributors include:

• Low relative humidity (below 30%), which prevents the natural surface-moisture layer that otherwise provides a dissipative path for accumulated charges

• Flooring materials with high electrical resistance — standard vinyl tiles, sealed concrete, or synthetic carpets are typical examples

• Waxed, painted, or plastic work surfaces and benchtops

• Packaging materials including polyethylene bags, EPS foam, and clamshell trays

• Chairs upholstered in vinyl, synthetic fabric, or fiberglass

• Clothing made from synthetic fibers such as nylon or polyester, which resist charge dissipation

• Tools and process equipment — spray cleaners, heat guns, and pneumatic blowers — that generate triboelectric charge during operation

• Continuous cooling airflow through underfloor plenums, which increases frictional charge generation on surfaces and can transport airborne conductive particles (including zinc whiskers) into server hardware

Human and Equipment Movement

Movement is the primary mechanism for charge generation in occupied facilities. Each footstep on a resistive floor surface causes a triboelectric charge transfer, and the resulting body voltage can reach several thousand volts when insulating footwear is worn. Common charge-generating activities include walking on synthetic or waxed flooring, handling non-conductive items such as plastic tools or unshielded packaging, wearing insulating footwear or synthetic clothing, and rolling wheeled carts or equipment racks across resistive floors. An anti-static raised floor neutralizes this risk at the source: every step on a properly grounded ESD floor dissipates the generated charge before it can build to a damaging level.

Environmental Factors

Relative humidity (RH) is the single most influential environmental parameter for ESD risk. When RH falls below 30%, surface moisture — which normally provides a natural dissipative path for static charges — is insufficient, allowing charge to accumulate rapidly on people, equipment, and floor surfaces. When RH is maintained between 30% and 50%, static generation is moderate and manageable with proper ESD flooring. Above 50% RH, ambient moisture acts as a distributed conductor, significantly reducing static buildup. However, RH must be balanced against condensation risk in cooled environments.

Key Features of Anti-Static Raised Floors

Modern mission-critical facilities rely on anti-static raised floor systems to deliver systematic, continuous ESD protection across the entire facility footprint. These systems combine precisely engineered core materials, application-specific surface finishes, and a verified grounding architecture to create a safe operating environment for IT equipment.

Core Materials and Their Applications

Abeite offers anti-static raised floor panels with a range of core materials, each engineered for specific load, fire, acoustic, and ESD requirements:

• Calcium Sulphate: Made from high-density natural gypsum. Delivers superior structural load capacity, Class A1 fire resistance, excellent acoustic attenuation, and — critically — eliminates zinc whisker risk entirely. The preferred specification for data centers, financial trading floors, and mission-critical control rooms with long operational lifespans.

• Steel: Provides high strength-to-weight ratio. Suitable for heavy-load server rooms where cost is a primary constraint, but requires careful long-term monitoring for zinc whisker generation from the galvanized underside coating.

• Wood Core: Lightweight and cost-effective. Appropriate for telecommunication hubs, office IT rooms, and installations where load requirements are moderate and ease of handling is prioritized.

Surface Finishes: Selecting the Right Covering for Your Environment

The surface finish is the primary ESD interface layer — it determines how quickly static charge is collected from personnel and transferred into the grounding path. The correct finish must be selected based on the specific application environment:

Surface Resistance: The Measurable Standard

Surface resistance is the primary quantitative metric for ESD floor performance. Anti-static raised floor panels must maintain electrical resistance between 1×10⁶ Ω and 1×10⁹ Ω — a range that ensures charges dissipate fast enough to prevent accumulation, but slowly enough to protect personnel from electric shock in the event of an equipment fault. This performance window is mandated by international standards including IEC 61340-5-1 and aligned with ANSI/ESD S20.20. Standard commercial flooring — including most vinyl tiles and sealed concrete — does not meet these resistance requirements and provides no reliable ESD protection.

Grounding Architecture and Charge Dissipation Path

A verified, low-resistance grounding system is the backbone of any anti-static raised floor installation. Abeite's system is engineered with a complete, traceable discharge path:

The complete engineered discharge path is: Anti-static surface finish → Conductive edge trim → Steel stringer/pedestal → Copper grounding strip → Grounding wire → Grounding electrode → Earth. This closed-loop architecture ensures that no panel in the floor grid operates as an isolated, ungrounded surface — the most common cause of ESD floor system failures in practice.

Compliance and Testing Standards

International standards define the performance thresholds that ESD floor systems must meet. Abeite's anti-static raised floor systems are designed with direct reference to:

Anti-Static Raised Floor vs. Other ESD Solutions

Mats, Wrist Straps, and Ionizers

Many facilities deploy anti-static mats, wrist straps, and air ionizers as supplementary ESD controls. Mats provide a static-dissipative surface at individual workstations. Wrist straps drain accumulated body charge from a technician's wrist during precision handling tasks. Ionizers emit positive and negative ions to neutralize static charge on insulating surfaces and objects that cannot otherwise be grounded. These solutions are effective for targeted, small-scale ESD control, but share a critical limitation: they depend on consistent user compliance and require frequent inspection and maintenance. They do not provide passive, facility-wide protection.

Why Anti-Static Raised Floors Outperform Alternatives at Scale

Anti-static raised floor systems provide facility-wide, passive, continuous ESD protection that no alternative solution can replicate at data center or manufacturing scale:

• Passive, continuous protection: no user action required — every footstep is automatically grounded

• Facility-wide coverage: protects the entire operational area, not just individual workstations

• Maintains human body voltage within safe parameters (typically <100 V) for the full duration of any working shift

• Underfloor void enables structured cable management for power, data, and cooling distribution — reducing cable congestion and improving airflow efficiency

• Demountable panels allow rapid access to underfloor services for maintenance and reconfiguration, reducing downtime

• Durable long-lifecycle design: calcium sulphate panels engineered for 20+ year service life in continuous-use environments

Limitations of Alternative ESD Controls

Installation and Maintenance Best Practices

Installation Guidelines

Correct installation is essential to achieving the grounding continuity that ESD protection depends on. The sequence is: prepare a clean, dry, and level subfloor to the specified flatness tolerance; install the pedestal grid according to the manufacturer's layout drawing, anchoring each pedestal base plate to the substrate; install stringers between pedestals to complete the understructure grid; place panels so each fits snugly with no gaps at the conductive edge trim joints; verify that all copper grounding strips are correctly connected to the pedestal understructure; and test electrical continuity and surface resistance at multiple points before the floor is commissioned for use.

Routine Testing and Upkeep

Ongoing testing is required to maintain compliance and catch grounding degradation before it becomes an ESD risk. Recommended practice:

• Conduct comprehensive surface-resistance and grounding-continuity re-testing every 6–12 months after initial installation

• Increase testing frequency after periods of high-intensity use, physical reconfiguration, or significant environmental change (e.g., HVAC upgrade, building work)

• Clean floor surfaces with anti-static dedicated cleaners only — standard floor waxes or sealers can coat the surface and raise resistance above the compliant range

• Inspect conductive edge trims and grounding strip connections at every maintenance cycle; replace damaged or missing trims immediately

• Maintain a maintenance log recording test dates, measured resistance values, corrective actions taken, and the technician responsible

Staff Training

The ESD floor system is only one element of a complete ESD control program. Staff operating in protected areas must understand the ESD risk, the function of protective measures, and their individual responsibilities. Training should cover: the mechanics of static charge generation and ESD damage; correct use of wrist straps, ESD footwear, and appropriate work clothing; routine verification of personal grounding devices using an ESD combo tester before entering a protected area; and enforcement of access and attire rules for ESD-protected zones (EPAs).

Choosing the Right Anti-Static Raised Floor

Factors to Consider

Selecting the optimal anti-static raised floor system requires balancing ESD performance, structural load capacity, fire resistance, lifecycle cost, and environmental credentials. The table below summarizes the primary surface-finish options:

Compliance with ANSI/ESD S20.20 and IEC 61340-5-1 is non-negotiable for data centers and electronics manufacturing facilities. Budget constraints should be weighed against the total cost of ESD-related downtime and component loss — in most mission-critical applications, specifying the higher-performance option delivers a strong return on investment.

Evaluating Manufacturers

Not all raised floor manufacturers offer equivalent quality assurance or ESD engineering expertise. A rigorous evaluation should include:

1. Verify that the manufacturer holds ISO 9001 certification for their production quality management system

2. Request third-party (not self-declared) test certificates for surface resistance and grounding continuity, measured to IEC 61340-5-1 protocols

3. Review their completed project portfolio for comparable facilities (data centers, semiconductor fabs, financial trading floors)

4. Assess technical support capability: can their engineers provide installation supervision, post-installation commissioning testing, and maintenance guidance?

5. Confirm whether the product carries recognized structural certifications (DIN EN 12825, CISCA) in addition to ESD certifications

Why Choose Abeite

Abeite is a source manufacturer of anti-static raised floor systems, specializing in calcium sulphate core panels that eliminate zinc whisker risk while delivering superior ESD performance and fire resistance:

Abeite's anti-static conductive PVC edge trim ensures continuous static dissipation across the entire subfloor grid, eliminating isolated panel "islands" — the most common cause of ESD floor failures in practice. Combined with a 100% calcium sulphate core, our systems provide a definitive long-lifecycle ESD solution for mission-critical infrastructure.

Anti-static raised floor systems protect sensitive electronics by providing a systematic, passive, continuous pathway for static charge to dissipate safely to earth — facility-wide, 24 hours a day, without relying on user compliance. For data centers and mission-critical electronics environments, they represent the most comprehensive and cost-effective ESD control measure available. Proper specification, professional installation, and scheduled maintenance testing ensure the grounding system continues to perform to standard throughout the facility's operational life. Abeite's calcium sulphate anti-static raised floors — with HPL or conductive PVC surface finishes — deliver both proven ESD protection and the zero-zinc-whisker guarantee that high-reliability data center operations demand.
